Some EDRIOASTEROIDS
of the CINCINNATIAN

Compiled by Colin D. Sumrall
Cincinnati's City Fossil: Isorophus cincinnatiensis


Introduction

Edrioasteroids are extinct members of the phylum Echinodermata that today includes such marine organisms as starfish and sea urchins. Like all echinoderms, the skeleton of an edrioasteroid is composed of a large number of elements called "plates."

Edrioasteroids are relatively uncommon fossils in the local Cincinnatian strata, but when discovered, they generally are found in fairly large numbers.

Edrioasteroids have a relatively simple body plan that is composed of a "theca," or main body, made up of scale-like plates. The theca is always attached by a ring called the "peripheral rim" to a hard object like a brachiopod shell or hardened sea floor. On the surface of the theca are five arms called "ambulacra" that radiate from a central mouth. The anus is typically a large code made of small triangular plates. Differences in the ambulacral curvature and the plating covering the ambulacra and the mouth form the basis for telling apart species of edrioasteroids.




Streptaster vorticellatus

Cover plates

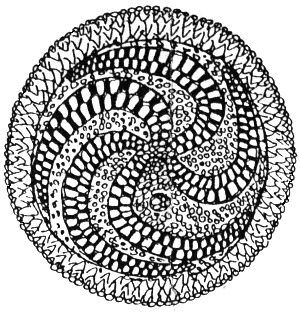

Typically, Streptaster vorticellatus is a small and rare edrioasteroid with prominent ambulacra that all curve counterclockwise. The theca is covered by small plates with small bumps and the widely spaced cover plates are tall with small spines at the tip.
Click here for a large photo of Streptaster (file size 103k).


Cystaster sp.

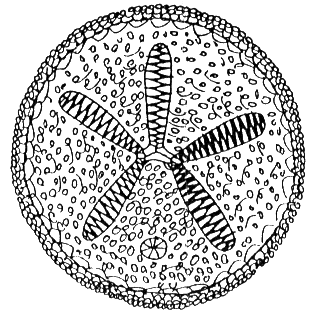

Cystaster is a small edrioasteroid characterized by high, straight ambulacra that are very wide. The theca can be circular to nearly pentagonal. Cystaster is represented in the Cincinnatian by two species that are very difficult to tell apart.
Click here for a large photo of Cystaster. (file size 94k)


Carneyella

Carneyella is characterized by wide ambulacra, four of which curve in a counter clockwise direction and the fifth, clockwise. The ambulacra have a single set of alternating cover plates. The mouth is covered by three very large plates, and the three species found locally can be distinguished from each other by the number of bumps on the cover plates.

Carneyella pilea

Carneyella pilea is the common species of Carneyella and is the second most common of Cincinnati's edrioasteroids. It has smooth thecal plates and smooth cover plates with no small bumps.

Carneyella faberi

Carneyella faberi looks almost exactly like Carneyella pilea except that the surface is covered with small bumps and there are two bumps on each cover plate.

Carneyella ulrichi

Carneyella ulrichi looks like Carneyella pilea except that the theca is covered with large bumps and there is one bump on each cover plate.
Click here for a large photo of Carneyella. (file size 196k)


Isorophus cincinnatiensis

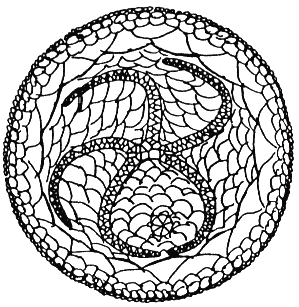

Isorophus cincinnatiensis is the most common of Cincinnati's edrioasteroids. Four of its slender ambulacra curve counterclockwise and one curves clockwise, The easiest way to distinguish Isorophus and Carneyella is to look at the mouth and ambulacra. Isorophus has four small plates over the mouth and thin ambulacra whereas Carneyella has three large plates over the mouth and wide ambulacra.

Cover Plates

Isorophus cincinnatiensis has two sets of cover plates - large ones marked "1" in the drawing above, and small ones marked "2." This characteristic separates Isorophus from all other Cincinnatian edrioasteroids.
Click here for a large photo of Isorophus. (file size 158k)

Isorophus cincinnatiensis was named Cincinnati's official city fossil.


Curvitriordo sp.

Curvitriordo looks like Isorophus except that there is a third set of cover plates on the ambulacra, marked "3" in the drawing above. There are several species found locally, and may be more common than previously recognized.
