Dry Dredgers Field Trip
March 28, 2009
A Northern Kentucky Kope Site

The weather held out for the Dry Dredgers that overcast spring morning. There had been plenty of rain, but none that day. March field trips are often "iffy", but the Dry Dredgers hold their field trips rain or shine.

The site we chose for the day was one that has been popular for decades, particularly in the spring, when the winter's freeze and thaws break down the shale into clay and expose high quality fossils of all kinds. The layers exposed are from the Kope (Latonia) Formation. So they are mostly shale, or mudstones, with occasional cycles of hard limestone rock the pros call carbonate facies. The site showed us most of the Southgate member of the Kope. I love the Southgate. We have had so much fun over the years collecting on these northern Kentucky road cuts. I hope the photos give you an idea of how we enjoy being out here.

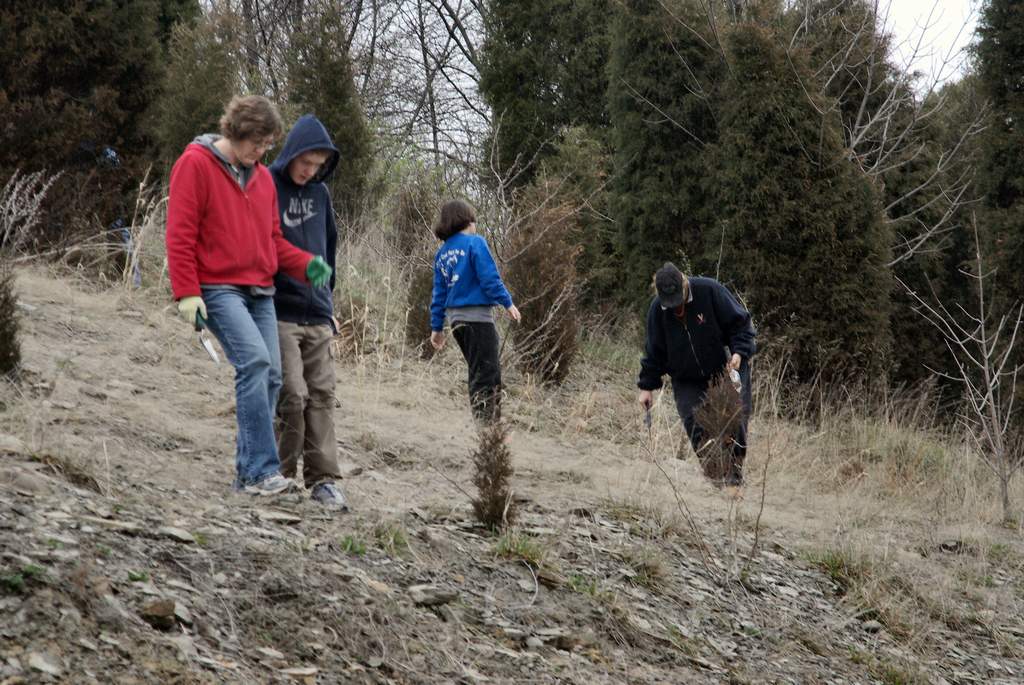

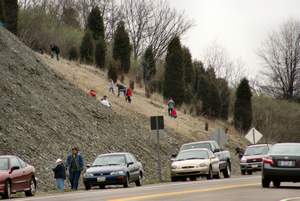

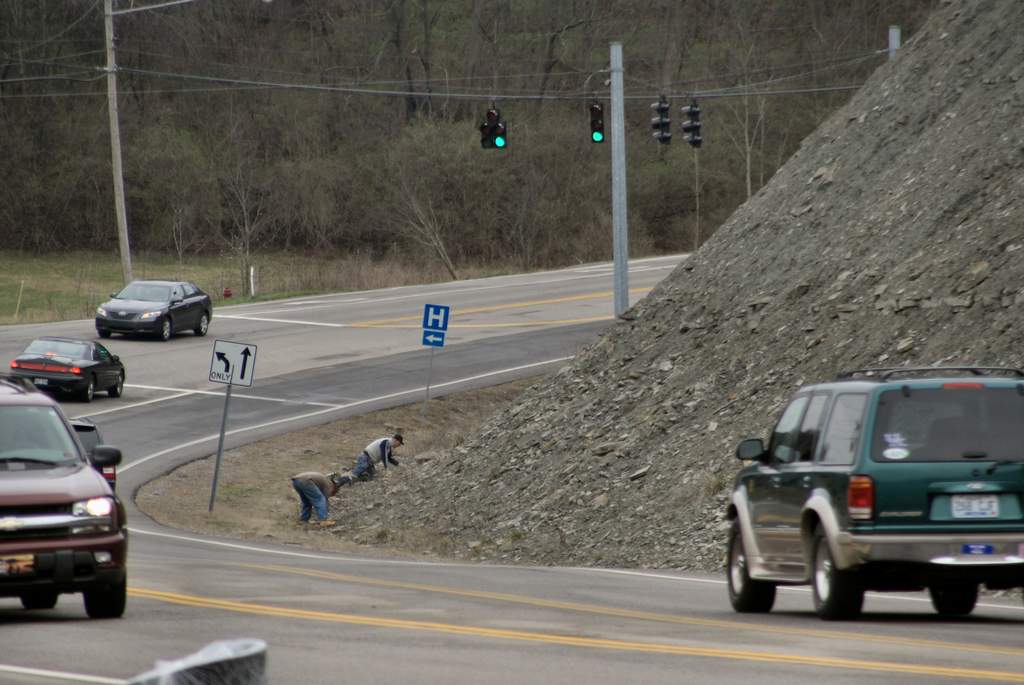

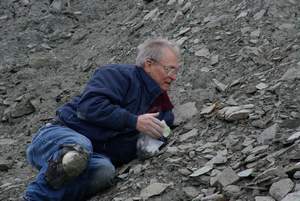

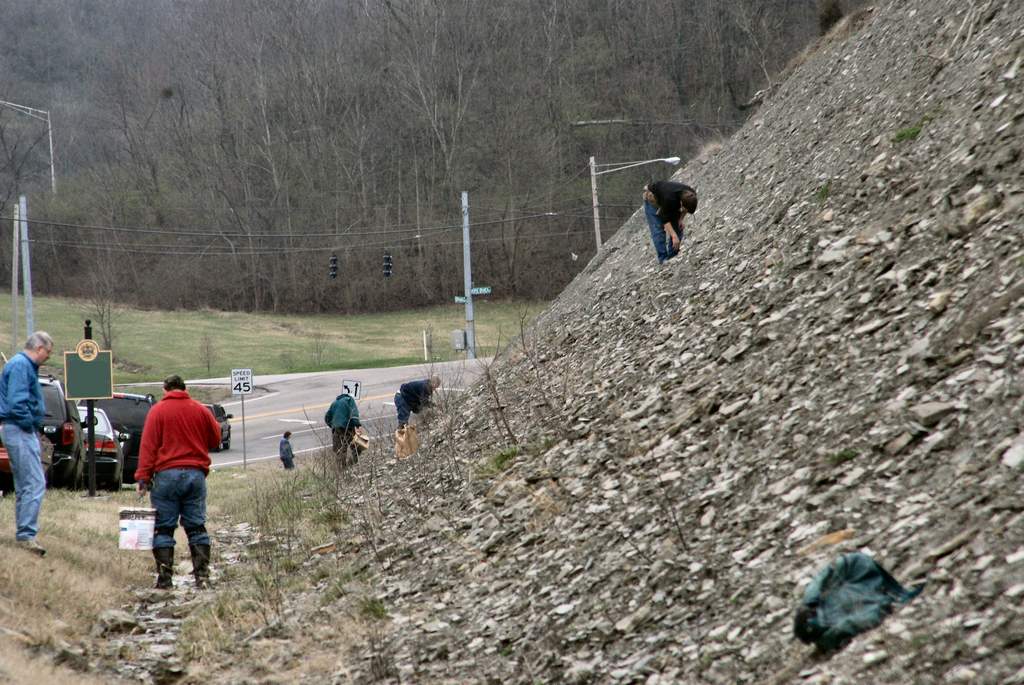

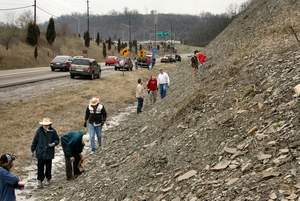

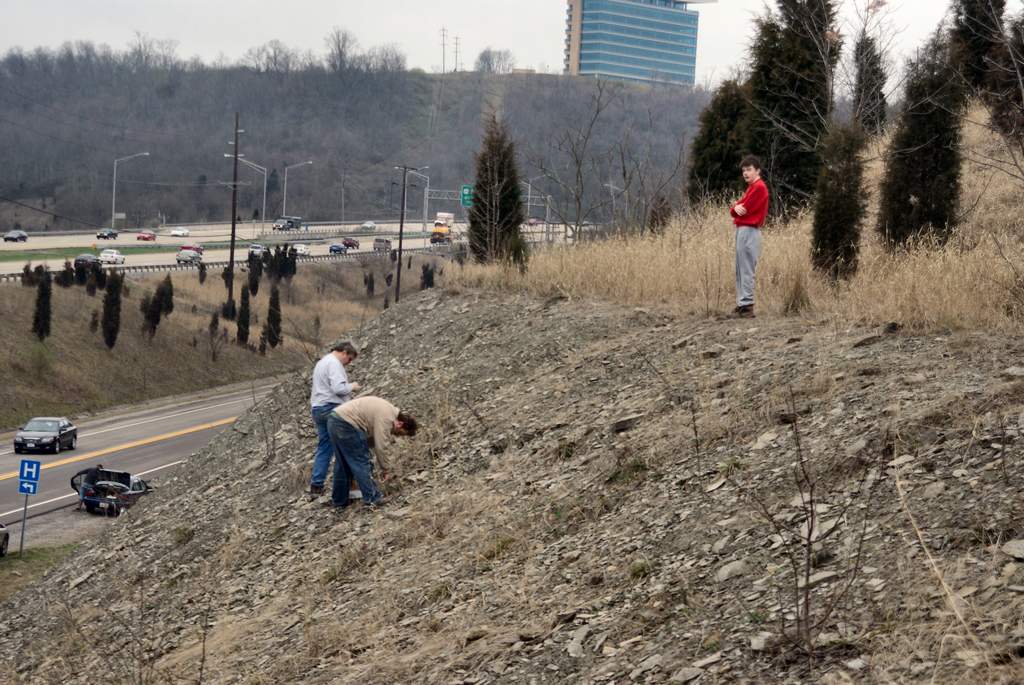

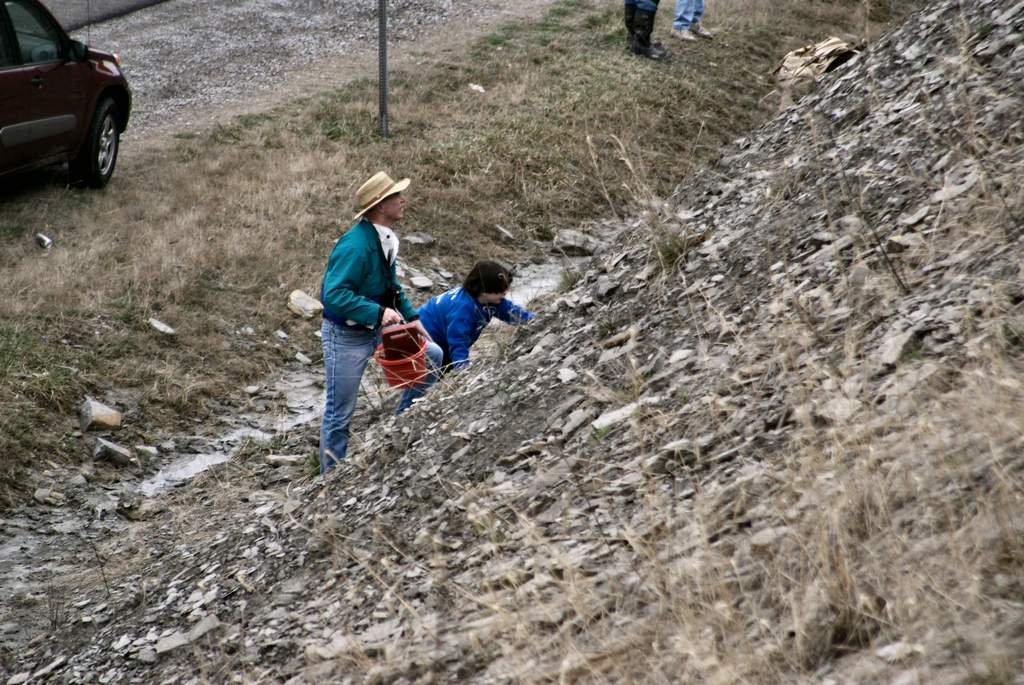

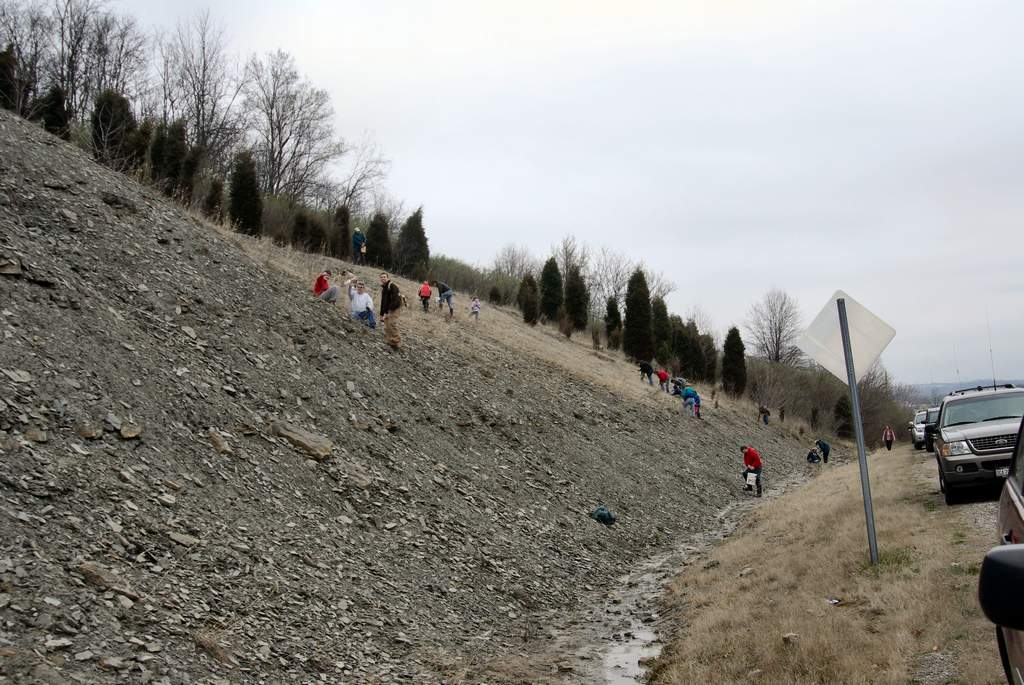

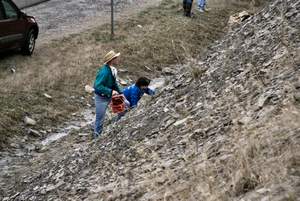

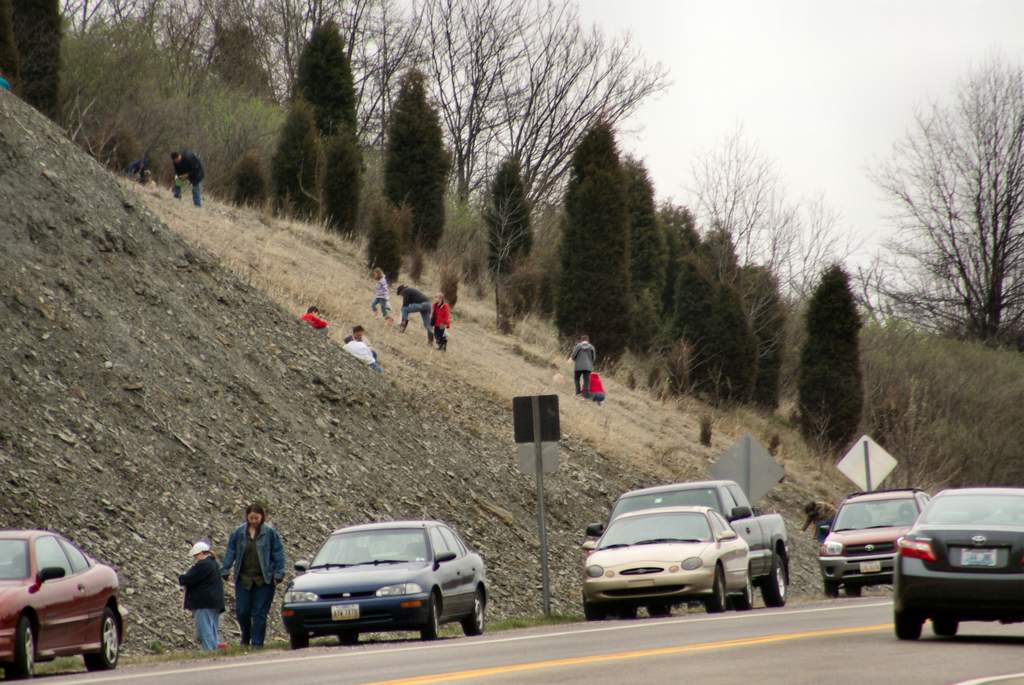

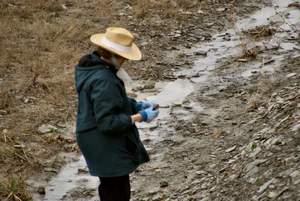

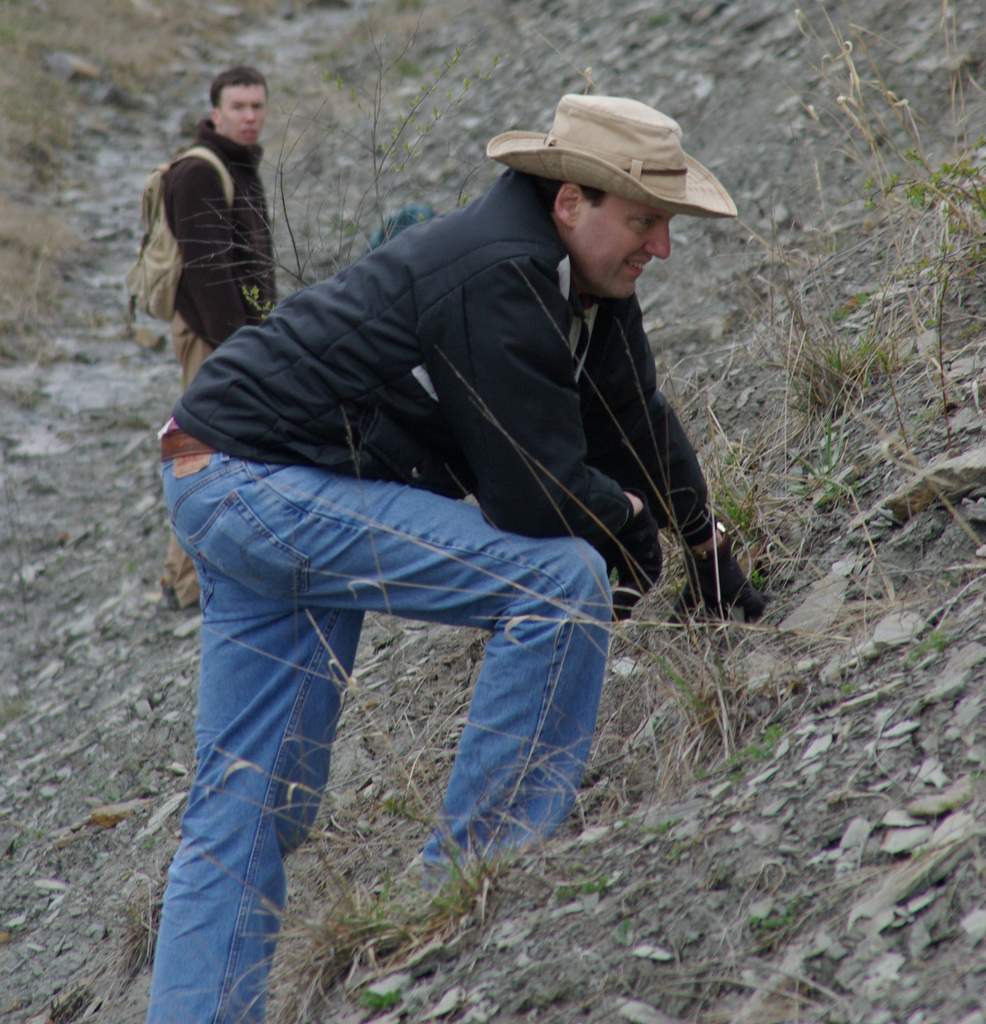

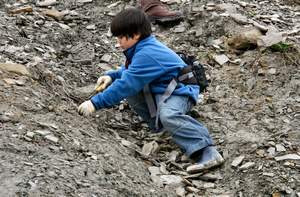

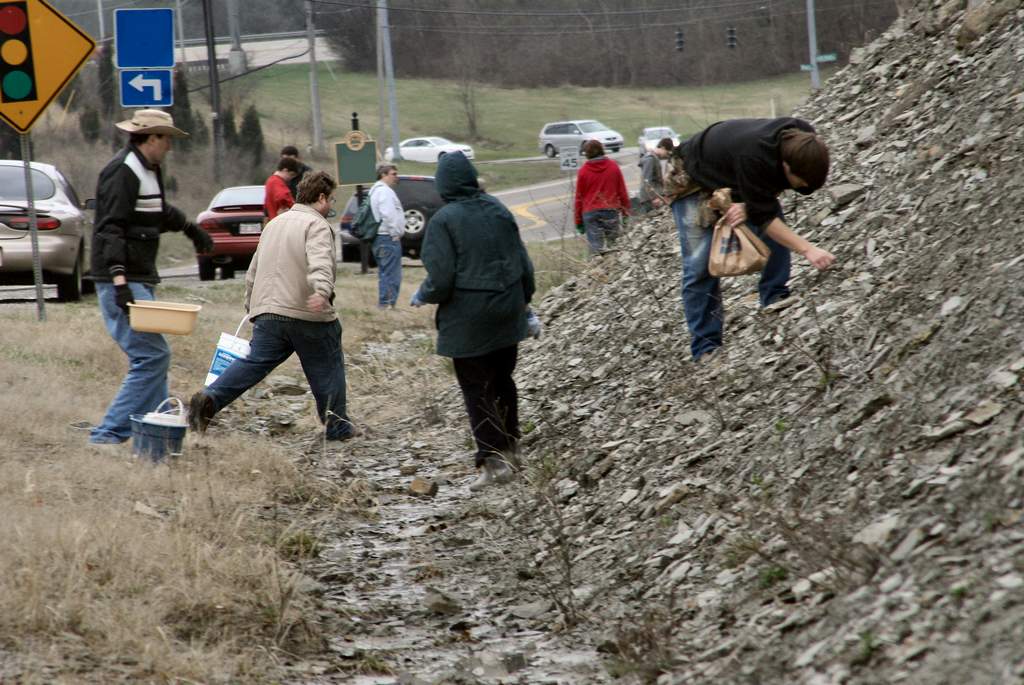

Pictures of the site:

IMGP3912.jpg IMGP3922.jpg IMGP3924.jpg IMGP3929.jpgIMGP3939.jpg IMGP3948.jpg IMGP3950.jpgIMGP3962.jpg IMGP3968.jpgIMGP3977.jpgIMGP4002.jpg IMGP4004.jpg IMGP4006.jpg IMGP4009.jpgIMGP4084.jpg IMGP4085.jpgIMGP4030.jpgIMGP4041.jpg

Fossils Found that day:

Best Find of the Day

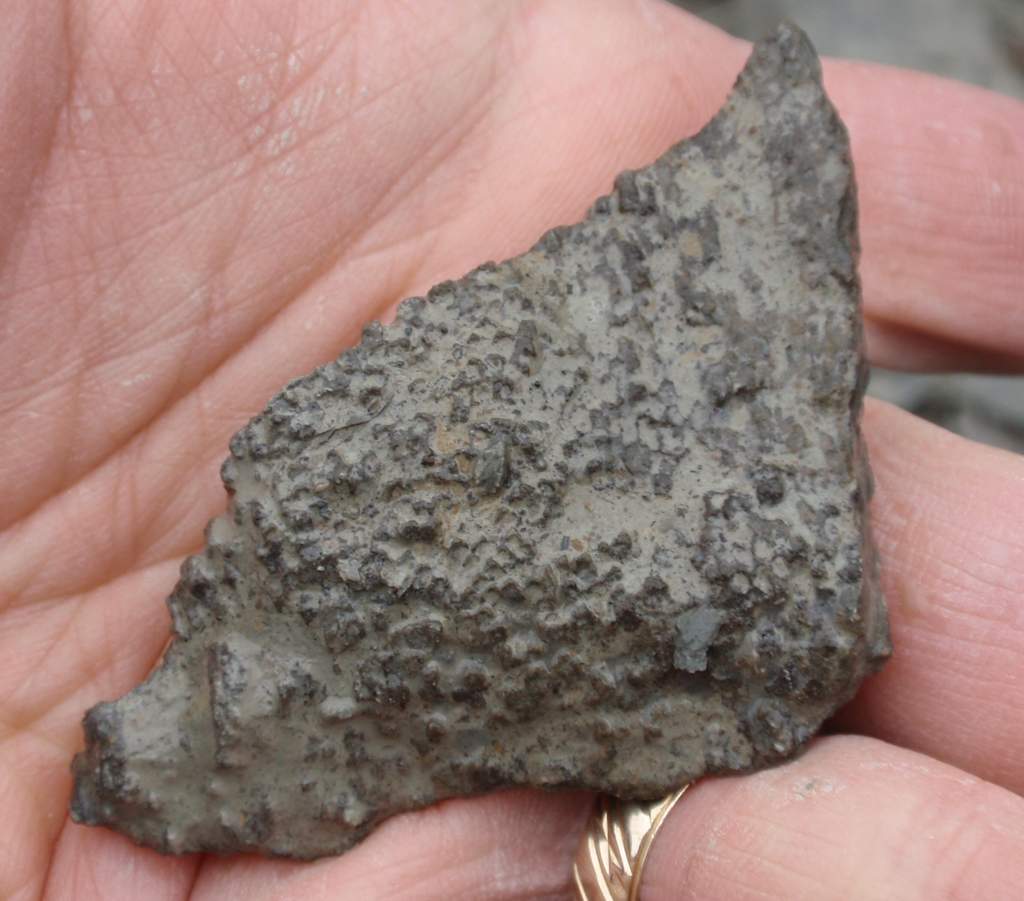

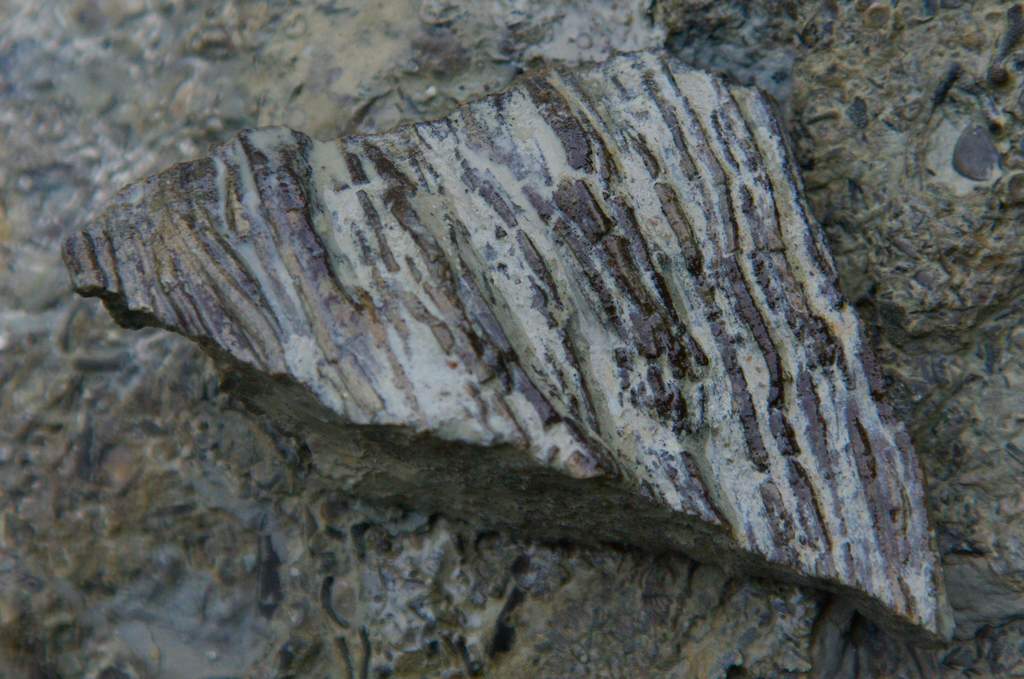

The best find today was a nice piece of what I think is colonial coral from the Kope Formation. Coral is rare, or at least uncommon, in the Kope. Almost all the reef building animals were Bryozoans 450 Million Years ago in our area. I'm not completely certain this is coral, though. The openings have weak or no septa. (See second photo). In the Cincinnatian, unlike in the Lexington layers to the south of us, the preservation is much better. There is very little crystalization and mineralization. In any case, this is a great find!

The next great find by a young member. It's Bryozoan with borings of Catellocaula vallata. This is thought to be a tunicate. It is bored into a Prasapora simulatrix Bryozoan. (next 2 photos).


Above two photos by Jack Berninger

Crinoids Found

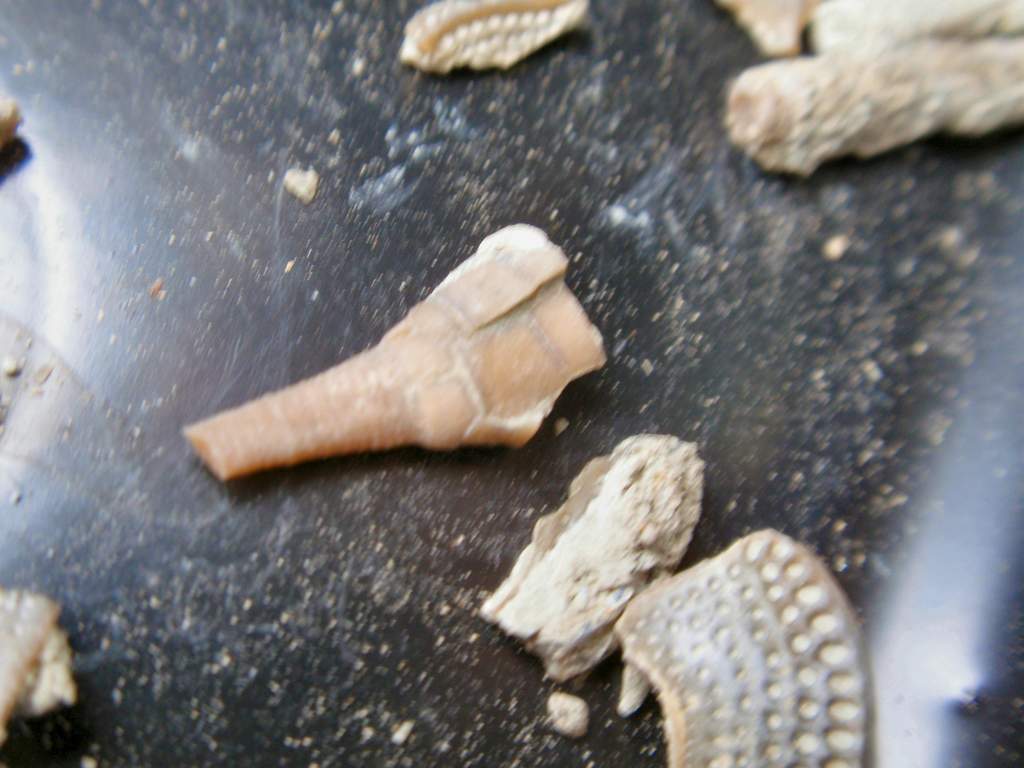

This site is famous for the crinoid calyxes that can be found here. Here are some pictures of the calyxes (head)  found today. They are all from the crinoid, Ectenocrinus simplex.
P3280010.jpgP3290053.jpg P3290065.jpg P3290069.jpgP3290015.jpg

No examples of the usual crinoid Cincinnaticrinus varibrachialus were found. They are probably more common than the ones we did find, but are smaller and harder to see.

Our field trip chair, Bob Bross, wanted us to find other types of crinoids so badly that he presented his rendition of a crinoid by dipping a weed in mud. Look familiar?

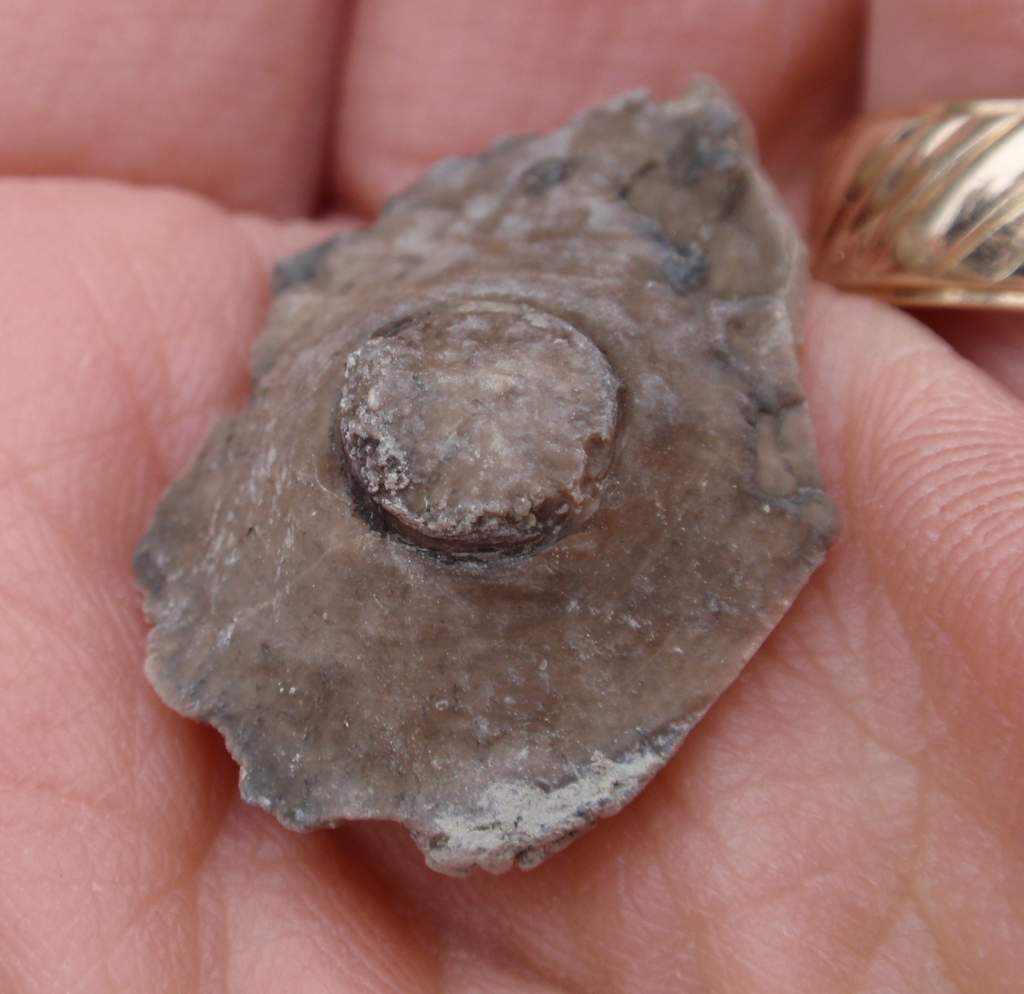

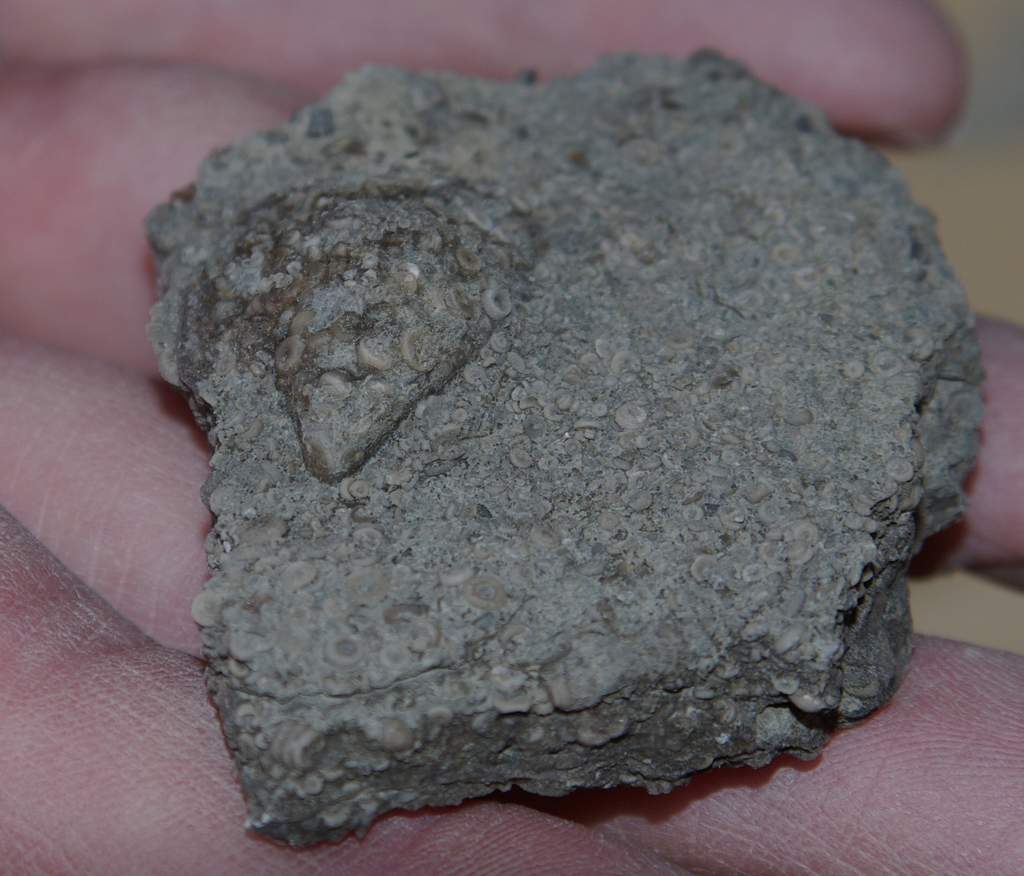

Other parts of crinoids were also found, such as this great holdfast of the very large crinoid Anomalocrinus incurvus.

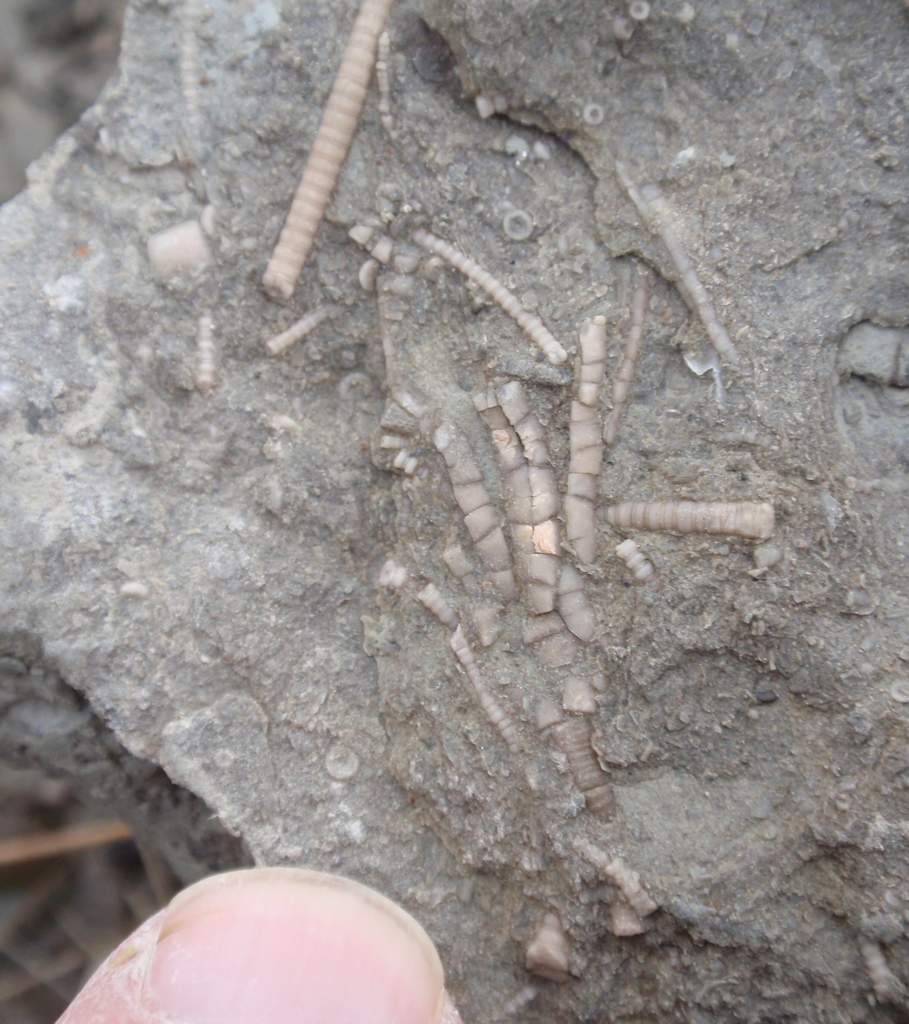

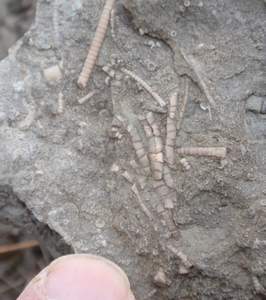

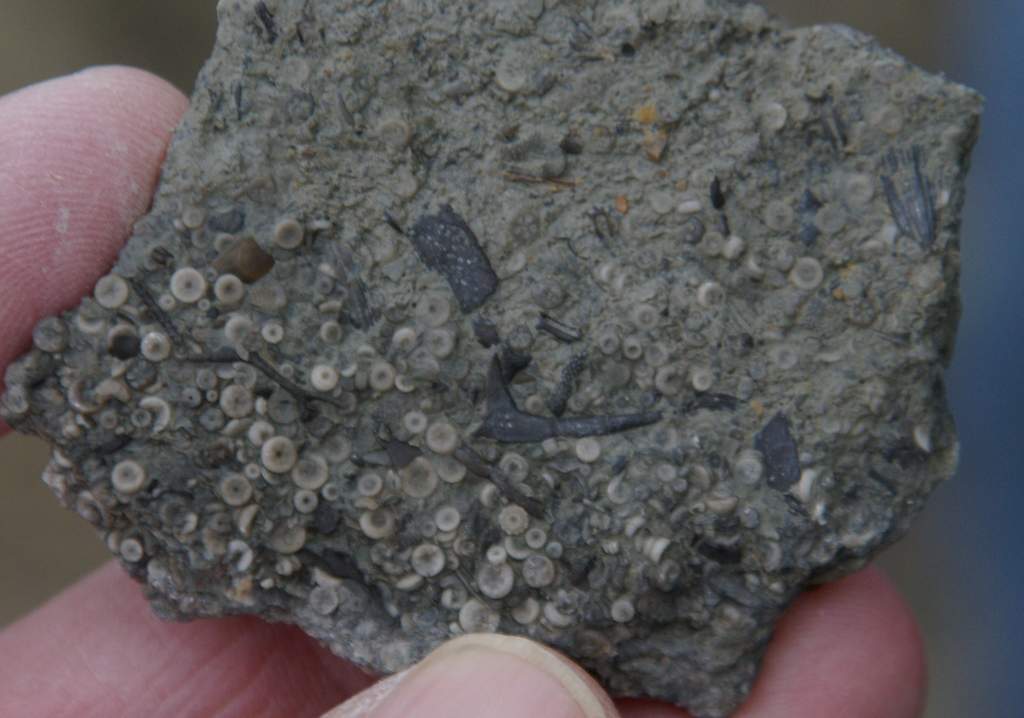

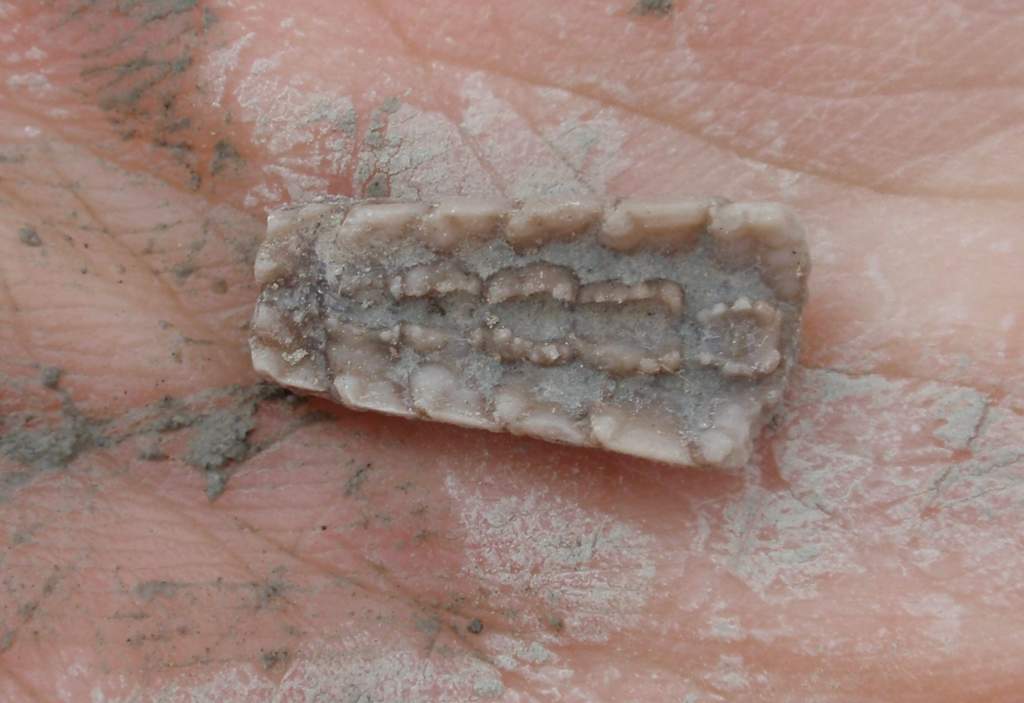

Crinoid stems and stem columnals could be found everywhere. They were on the surface of rocks, lining cephalopod in-fills as well as the bottom of gutter casts. (next 3 pics).

Cephalopods Found

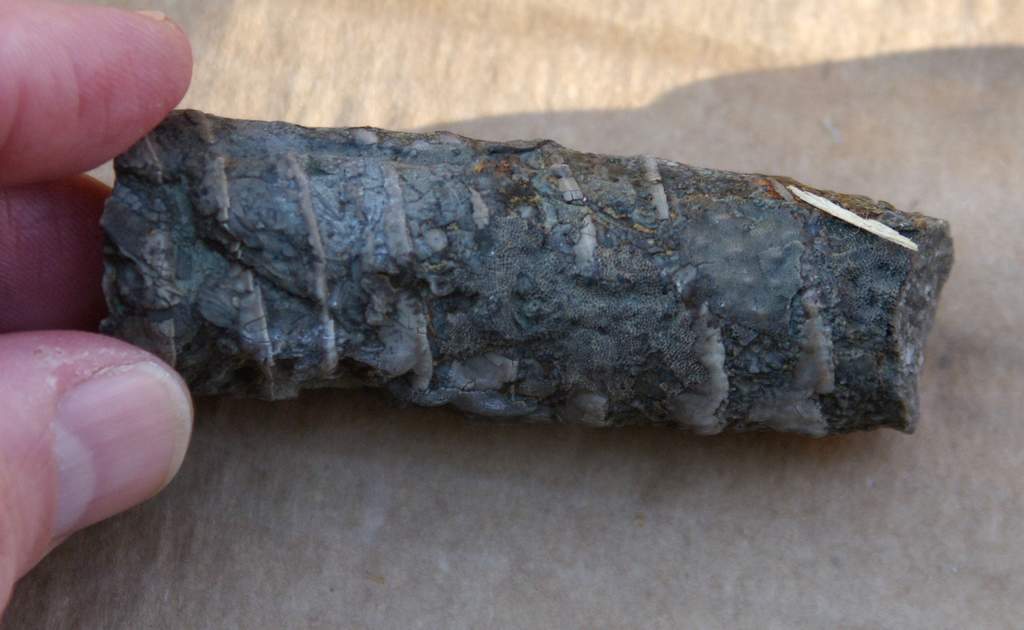

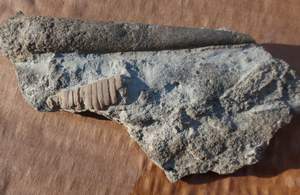

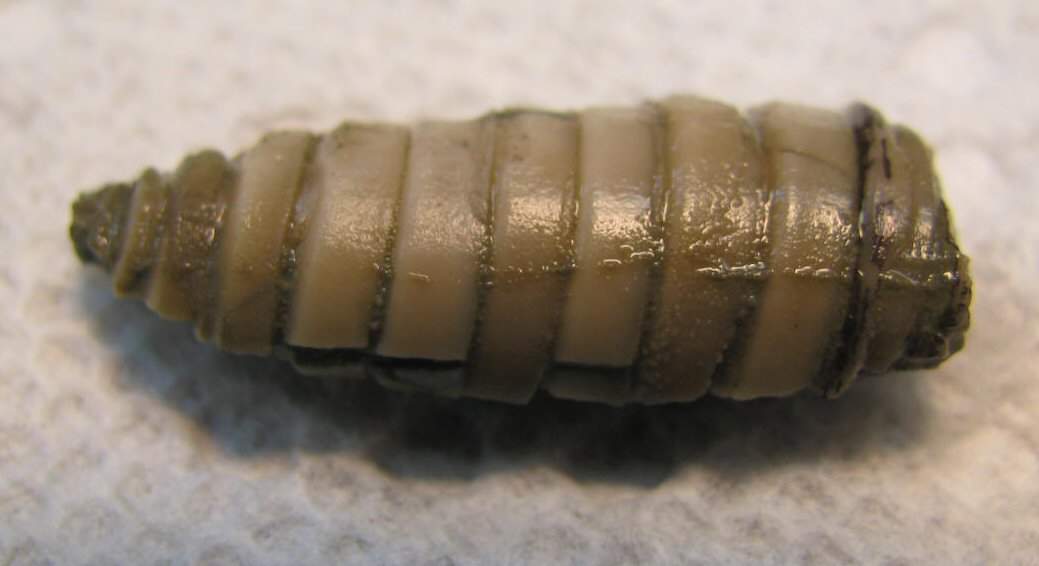

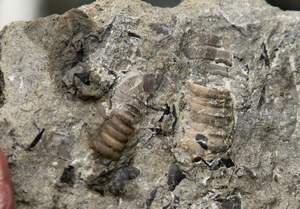

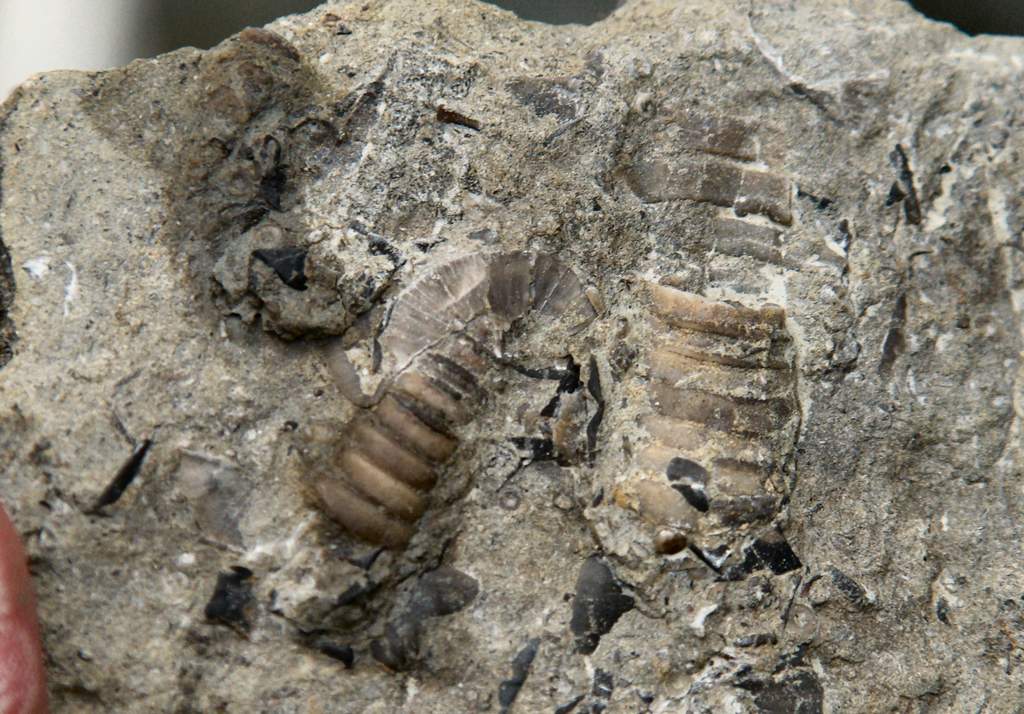

It was also foretold at the meeting the night before that many Nautiloid Cephalopods would be found. They were right. And the shell preservation on many of these is excellent!.
Above photo by Marianne Shelton

P3310089.jpgIMGP4114.jpg IMGP4118.jpgIMGP3975.jpg

IMGP4071.jpg IMGP4123.jpg


Often, the center tube called the Siphuncle is broken open and is often mistaken for a Sea Star arm.

Here's an interesting specimen. This is a fragment of a huge Cephalopod that is encrusted with bryozoans.

Graptolites Found

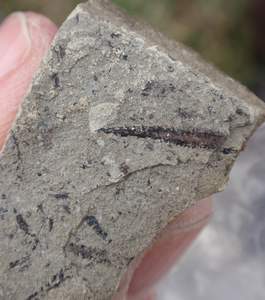

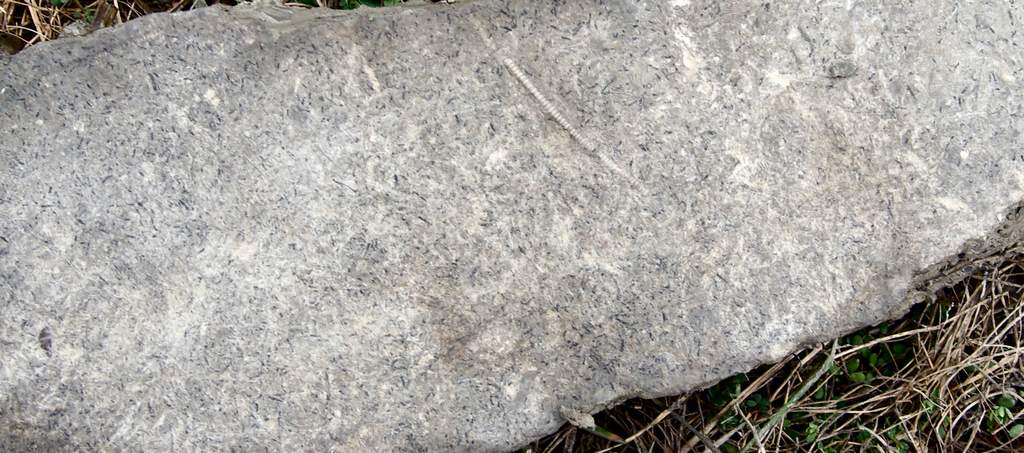

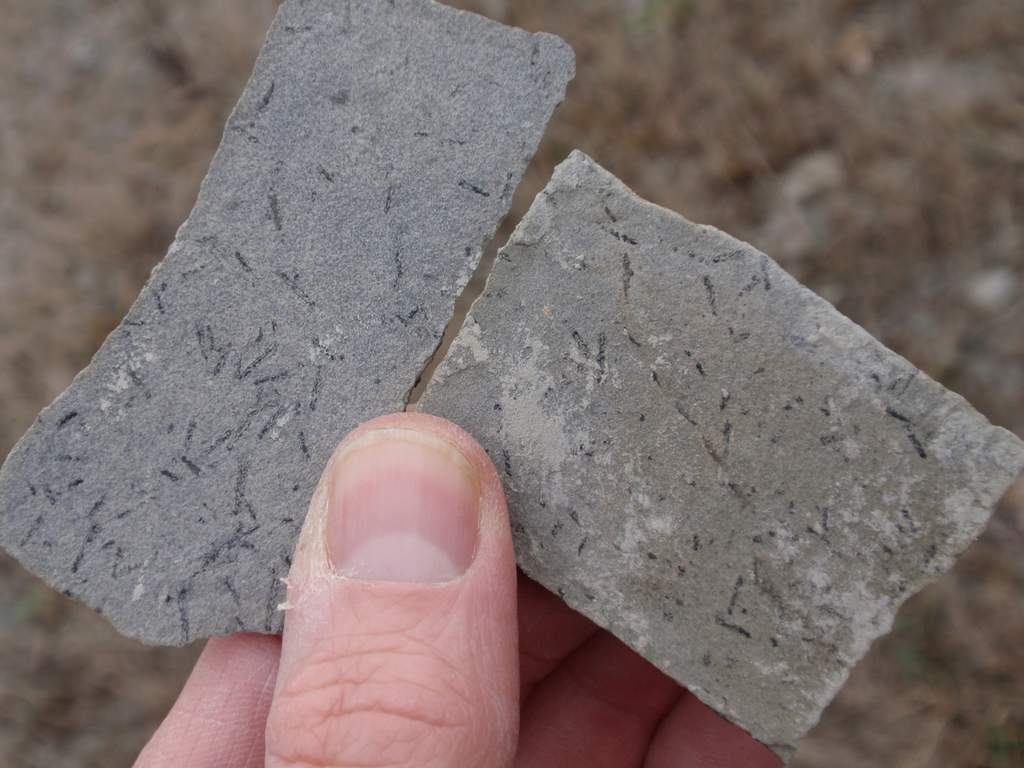

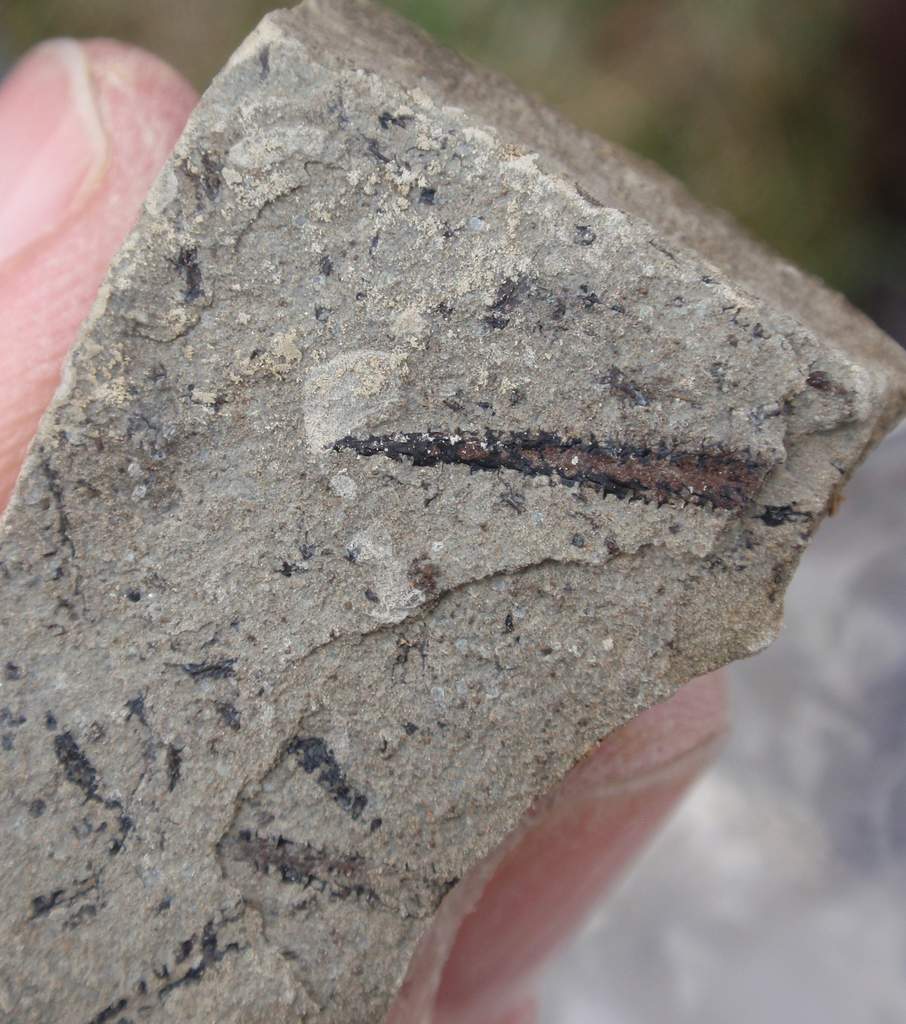

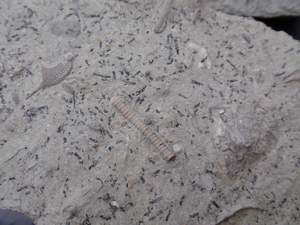

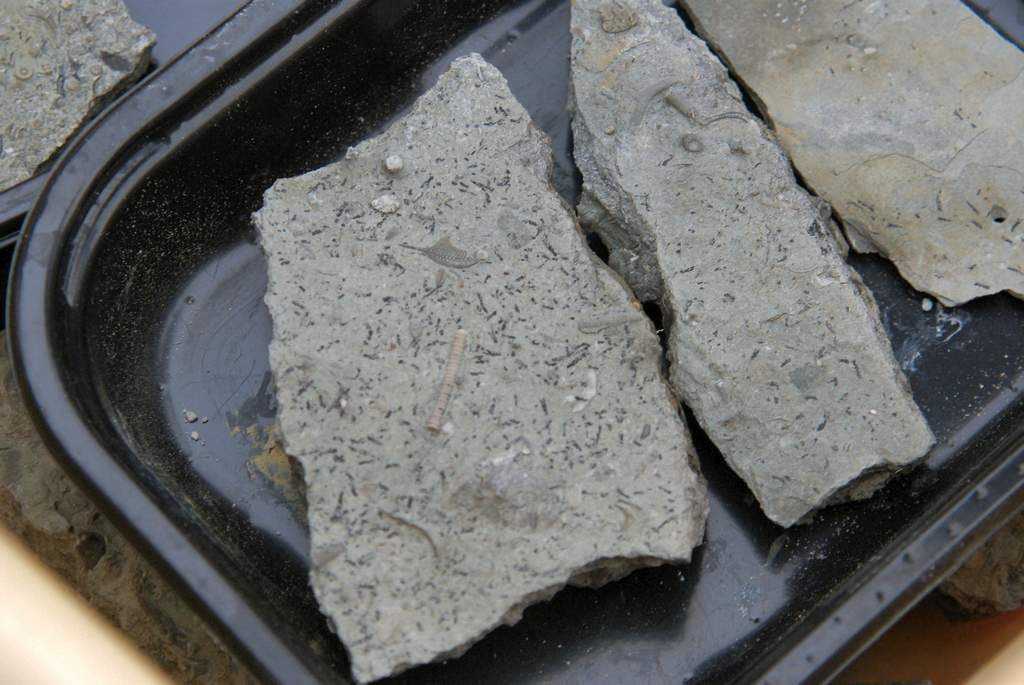

Graptolites are very common on the shale surfaces of rocks at this site. They appear mostly as black markings on the rocks.

P3290033.jpg P3290035.jpgP3290022.jpgIMGP3980.jpgIMGP4094.jpg

Sometimes the Graptolites retain some of the 3 dimensional features, as shown in the one found below.

Trilobites Found

The two types of trilobites found were Flexicalymene and Isotelus.

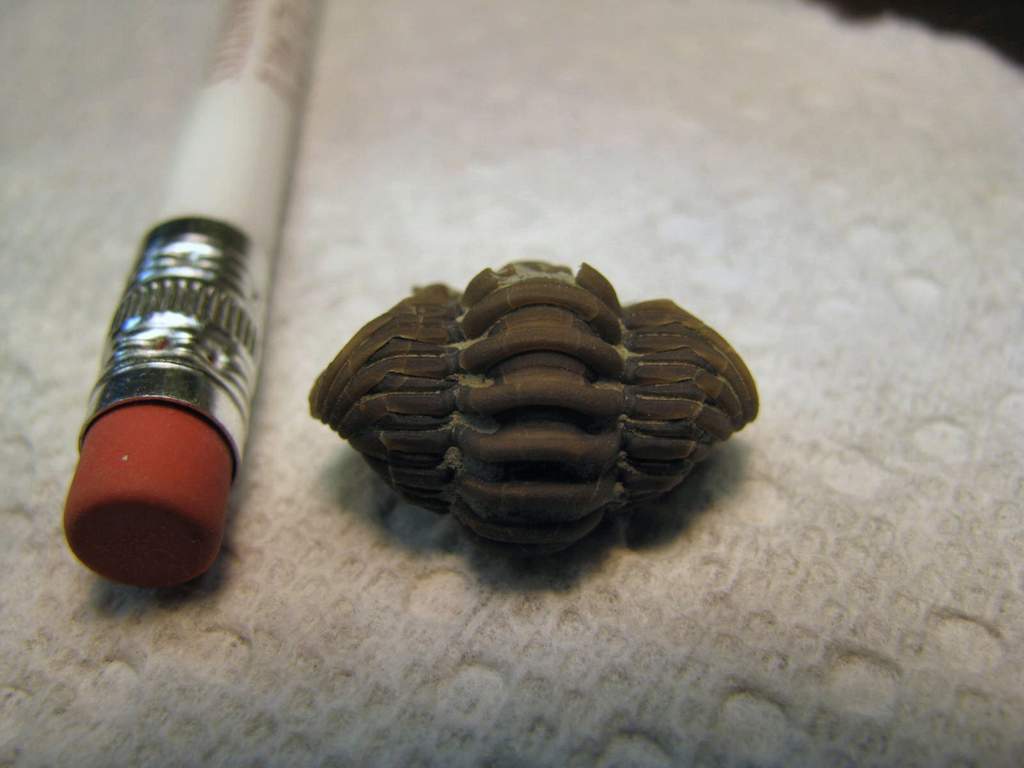

Some Flexi's were found whole.
photo by Marianne Shelton

While other Flexicalymene's were found as molted parts. Here's a pygidium (tail) in matrix (rock).


The burrows of Flexicalmene trilobites were also found. In this form, they are called Rusophycus.

No whole Isotelus were found, but quite a few hypostomes (mouth plates) were found. (next 3 pics.)

photo by Marianne Shelton

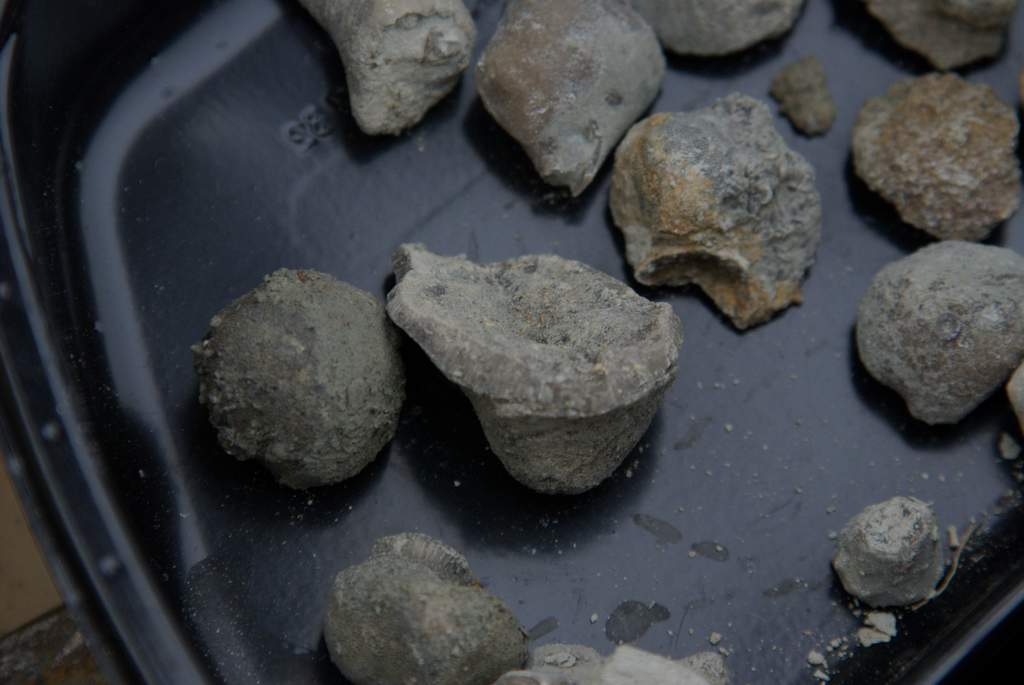

Nodules Found

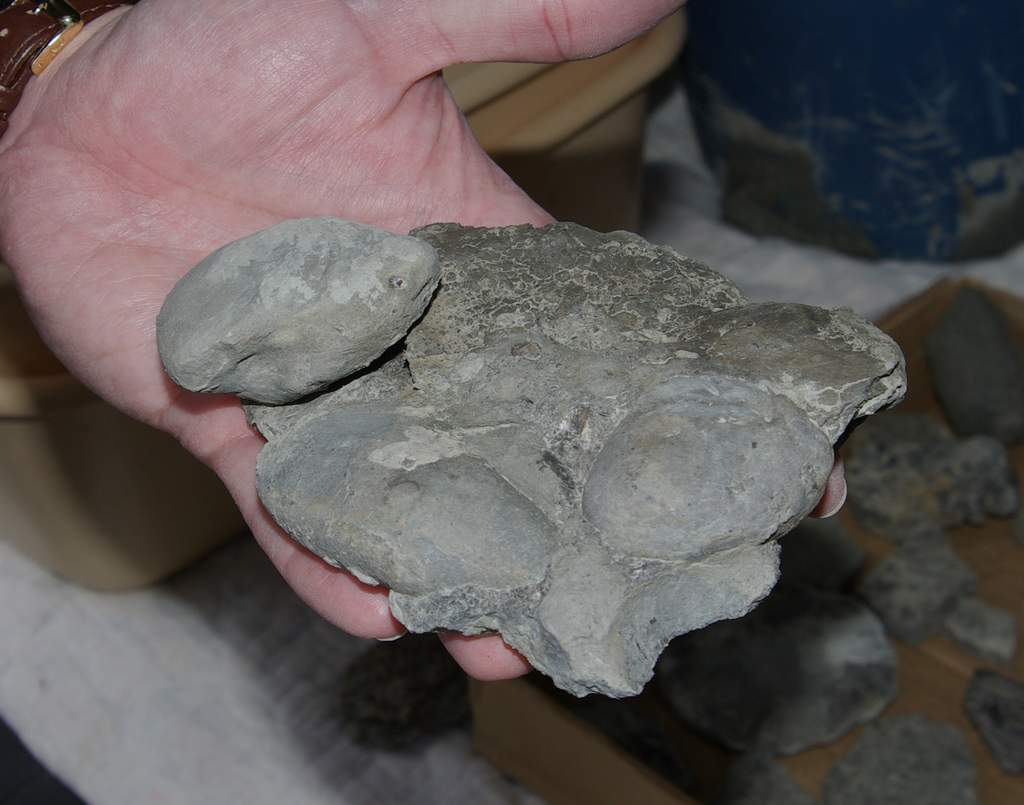

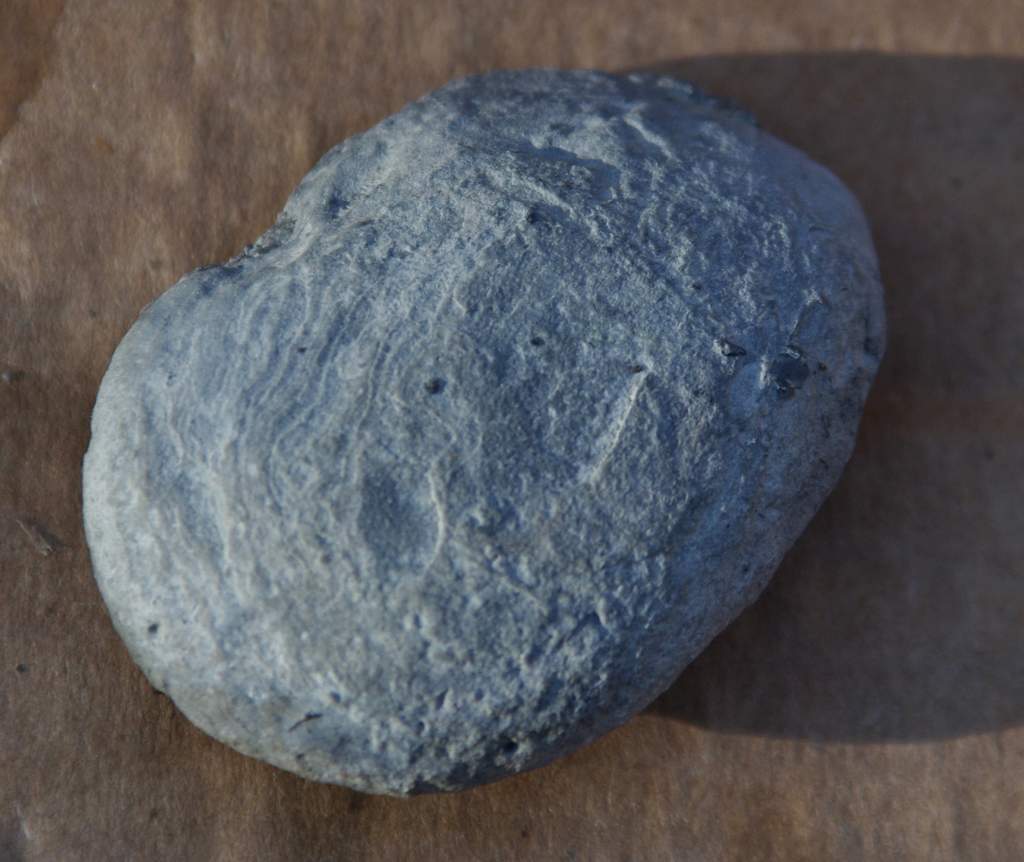

The shale layers of the Kope formation are not always homogenous units of hard clay. There are often pockets of nodules, usually below limestone layers. On some of these nodules, you can see encrusters like bryozoans and crinoids. In the two examples below, no encrusters were found, but the color of the nodules has changed and there may be surface evidence that encrusters had been weathered off these specimens.

Gastropods Found

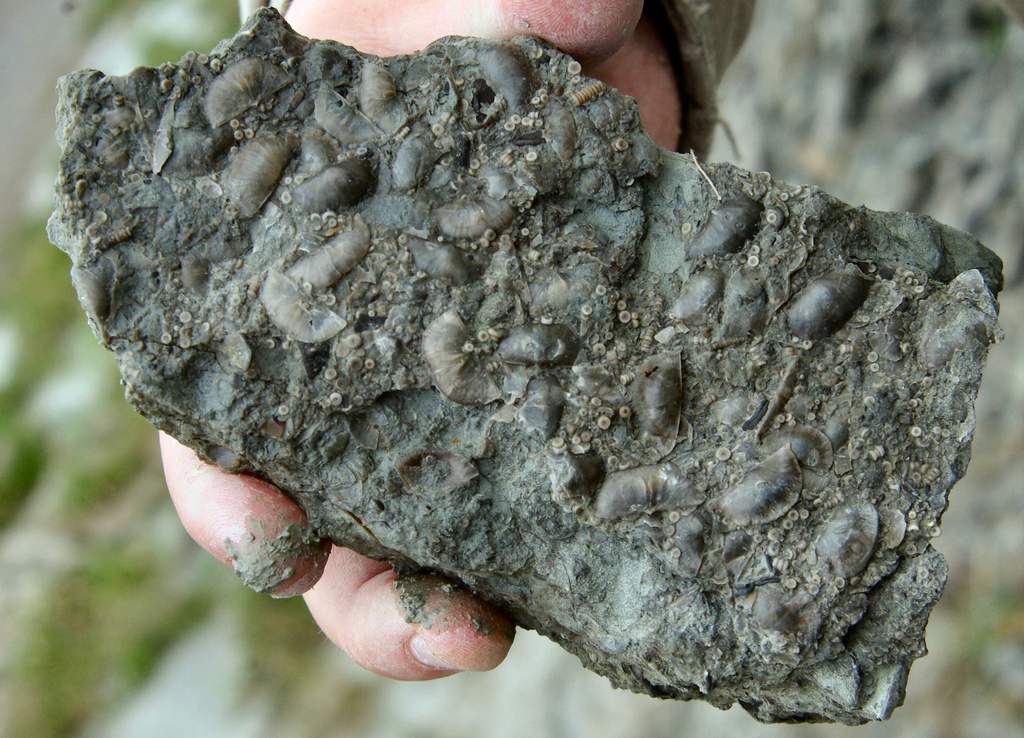

The Kope Formation has a number of mollusk layers that are loaded with snails, clams and cephalopods. Most of these mollusks have excellent shell preservation. Here's a sampling.

Bryozoans Found

Some bryozoans we found had what appeared to be borings in them, such as the next specimen. It's possible this is Catellocaula vallata.



This bryozoan on a rock surface was preserved by iron pyrite and other minerals.

A wide variety of bryozoans could be found on this site. The one in the center of the next photo is Prasapora simulatrix.

Worm Tubes Found

The tubes of annelid worms such as Cornulites were found loose on on rock surfaces, as shown in the next two photos. When found in rocks, they do not always show that in life their narrow end was attached to something. Occasionally, we find what may actually be a free-swimming animal, known as Tentaculites. The true nature of the animals that made the fossils Cornulites and Tentaculites are still being investigated and can still be considered problematica.

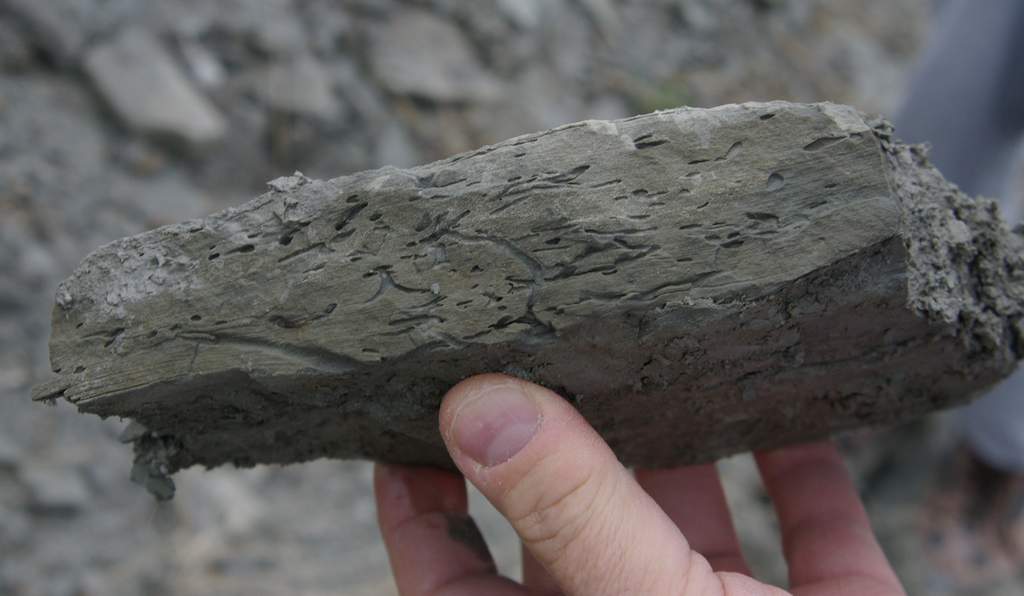

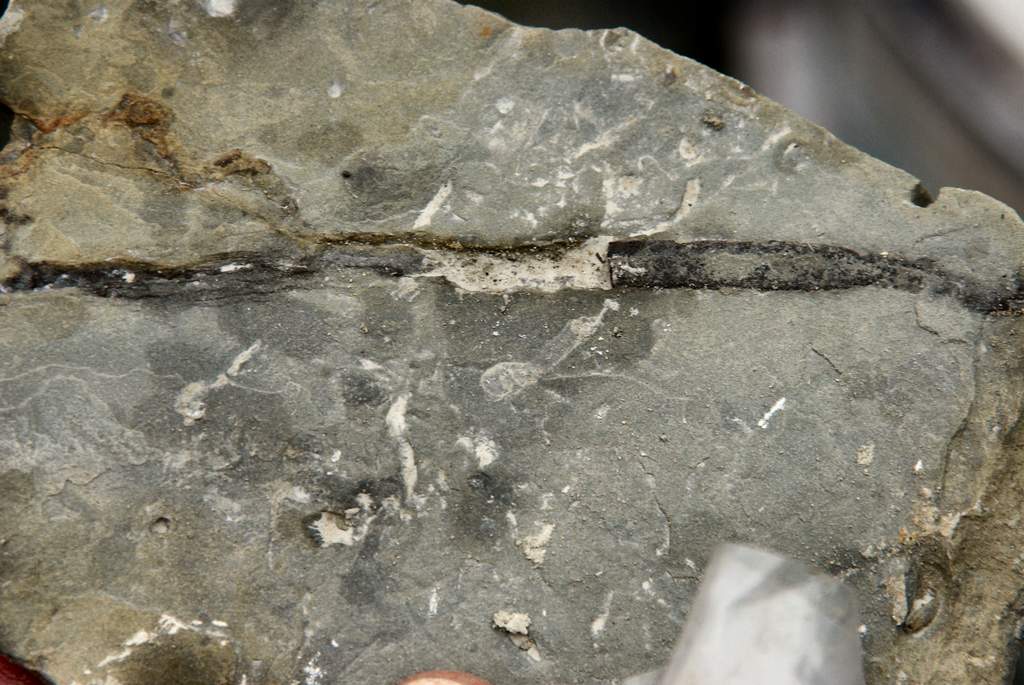

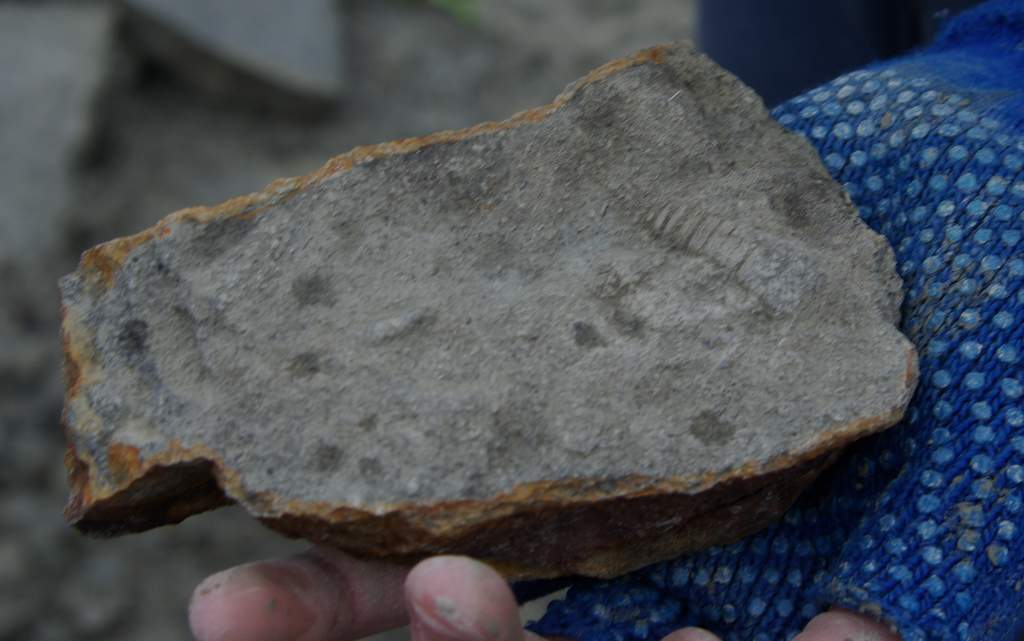

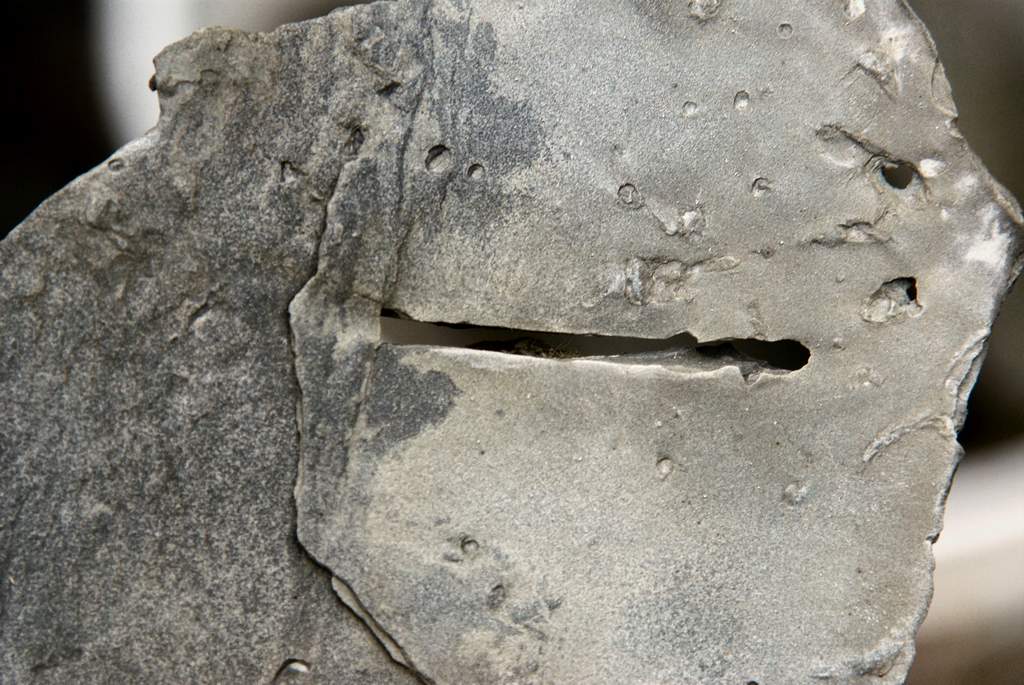

Trace Fossils Found (Ichnofossils)

P3290075.jpg  IMGP4063.jpg   IMGP4075.jpg IMGP4077.jpgIMGP4054.jpg

Pelecypods Found


Brachiopods Found

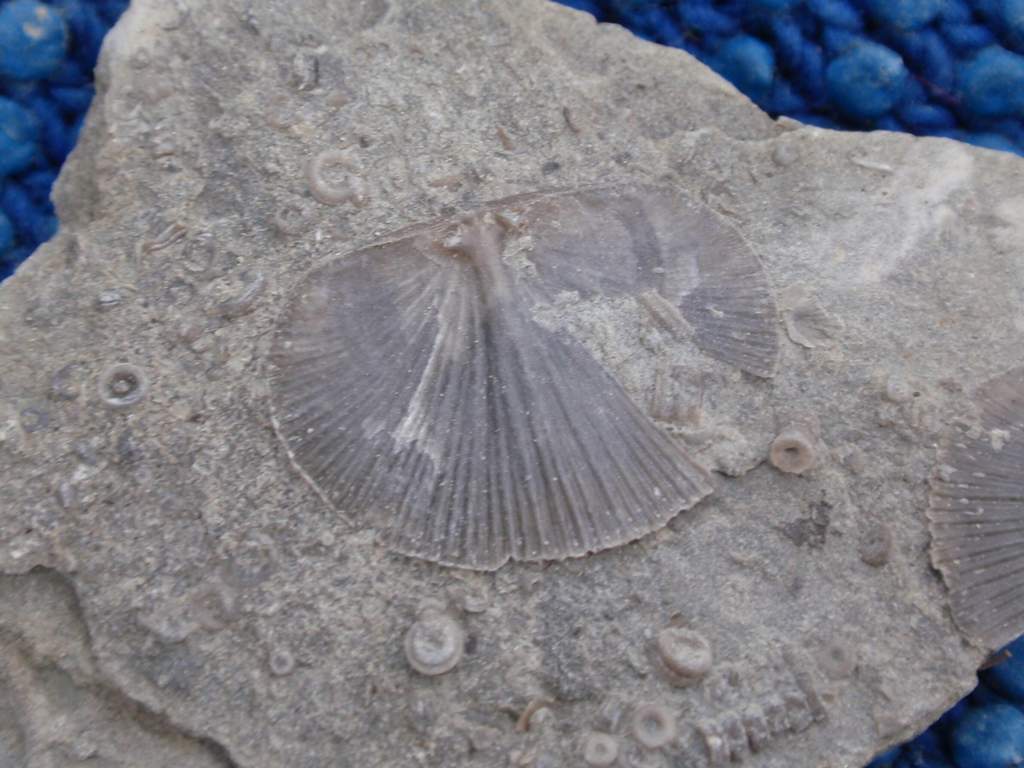

Rafinesquina squamula

Sowerbyella rugosa


Cincinnetina multisecta

Previous Trips to This Site

2006
2004

2002



That's it for March 2009. Now lets look at April's field trip when the Dry Dredgers return to the Ohio Ponderosa Ranch.
